Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: OEM
  • Model Number: TIG-200H
  • Arc Current: 5-200A
  • Pulse Frequency: 50-60Hz
  • Pilot Arc Current: TIG:29A, MMA:35A
  • Rated Duty Cycle: 60%
  • Motor Type: DC Motor
  • Dimensions: 439*140*280mm
  • Usage: Stainless Steel
  • Voltage: Single phase 220V
  • Power(W): TIG(4.6KVA);MMA(5.4KVA)
  • Certification: CE CCC RoHS Emc TUV
  • Warranty: 3 Years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: Red
  • Function: DC HF TIG/ TIG LIFT/MMA
  • Type: IGBT control
  • Name: tig/mma 200a welding machine tig
  • Accessories: Torch TIG WP-17*3M+Electrode Holder 16mm2*3M+3M*Earth Cable 16mm2
  • Weight: 8kg
  • Product name: High Frequency TIG 200 welding machine
  • Efficiency: 80%
  • Power Factor: 0.8COS
  • Packing: Color Box

Packaging & Delivery

Packaging Details Carton box or color box for Inverter TIG MMA 200 Electric Welder / TIG Welding Machine
Delivery Time 35 working day welding machine TIG
Product Description
Inverter TIG MMA 200 Electric Welder / TIG Welding Machine

Features:

  1. Robust design: unique rubber back and front panel, and metal housing to withstand tough environmental conditions.
  2. HF TIG / TIG LIFT / MMA
  3. Excellent Smooth & Stable Welding Performance
  4. VRD Optional.Anti-sticking, Hot start, Arc force
  5. Power Surplus: additional power for superior arc control.
  6. Auto Adaptive Arc Force
  7. Built in “Hot Start” for stable arc with lower spatter level
  8. Lift TIG with excellent striking without tungsten contaminations
  9. Applcable for all type of Electrodes
  10. High current output and duty cycle
  11. Good for use With Long Supply Cables
  12. Portable lightweight, small and robust.
  13. All Types of Mains network or generator use
  14. RIGHT 3 Years Limited Warranty for Parts and Labor

Inverter TIG MMA 200 Electric Welder / TIG Welding Machine Specifications:

Parameters/ModelsTIG-200H
Power supply voltageSingle phase 220V/230V/240V±10%
Frequency(HZ)50/60HZ
 TIGMMA
Rated input current(A)2935
Rated input power(KVA)4.65.4
Power factor(cos)0.8
Weldingcurrent adjustment range(A)5-200
Max no-load voltage(V)62
Down Slope Time(S)0-10
Efficiency≥80%
Duty cycle(40,10 minutes)TIGMMA
200A 25%170A 30%
125A 60%125A 60%
100A 100%100A 100%
Protection classIP23S
Insulation classF
Dimensions of Machine(L*W*H)439*140*260mm
Weight(kg)8

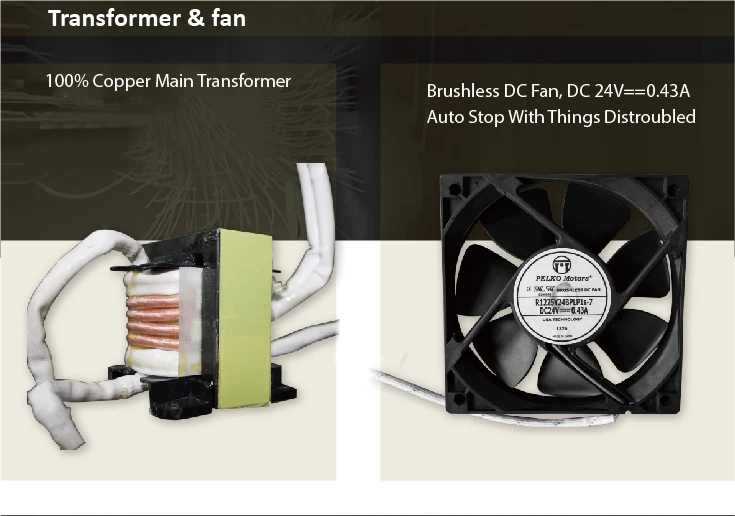

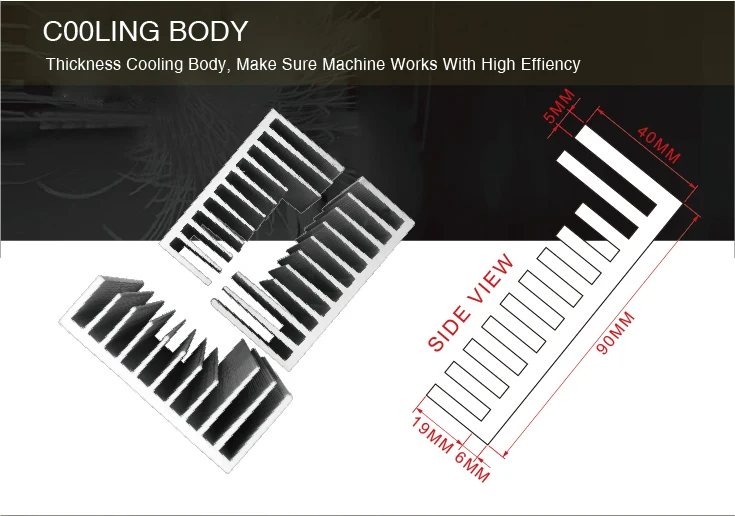

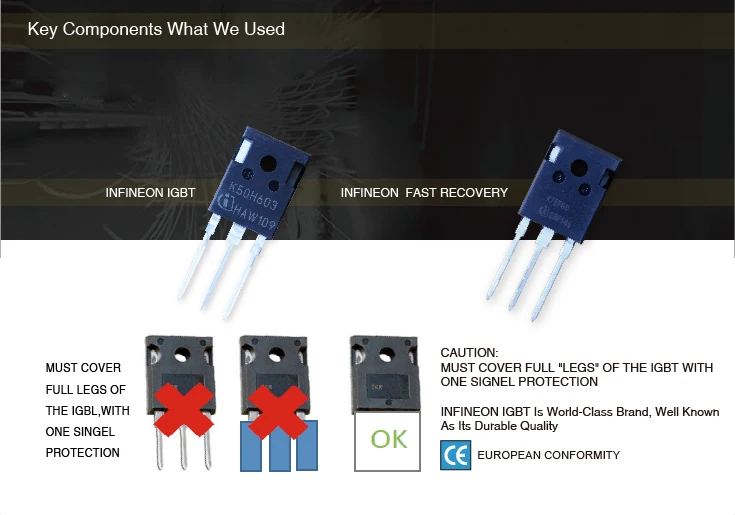

Inverter TIG MMA 200 Electric Welder / TIG Welding Machine with thickness of the cooling bodyInverter TIG MMA 200 Electric Welder / TIG Welding Machine with HF TIG TIG LIFT MMA, ARC FORCE, HOT START, ANTI-STICKING, VRD Function:Inverter TIG MMA 200 Electric Welder / TIG Welding Machine INFINEON IGBT 100% copper main transformer and high speed cooling fan using for 200A IGBT DC inverter TIG/MMA welding machine TIGInverter TIG MMA 200 Electric Welder / TIG Welding Machine

the burning of tungsten electrod. Outstanding welding performance is no overstatement. Every element of RIGHT iTECH INVERTERS are desingned to meet the needs of professional welders on the move. Where size, weight and welding qulity are concerned, there is no equal.  RIGHT iTECH INVERTERS can be used with mains power supplies or power generators even with extra long supply cables,

Light and easy transportable: The machines are easy to carry, in hand for all type of job.

Large voltage reserves and automatic arc force control provide excellent arc stability in all welding positions

and for a wide range of electrode types.

The large and clear meter display makes accurate current setting simple and easy, and precise lift TIG igniton

ensures high quality DC TIG welding.

Intelligent protection:Over-voltage, Low-voltage, Over-current, Over-heat

ideal for maintenance, building construction and light metal structures

RIGHT ITECH Special HF control provides 100% rapid and precise arc ignition. Special control can reduce
Hot Selling Machine

Click the picture to get product details.






Click below to find the series you want directly.



RIGHT MMA(ARC) Series



RIGHT TIG(ARGON) Series



RIGHT MIG Series

Production

200A IGBT DC inverter TIG/MMA welding machine TIG Will Be Tested Strickly Before Shipment for welding machine   Packaging with colorful box, 200A IGBT DC inverter TIG/MMA welding machine TIG

Certifications

200A IGBT DC inverter TIG/MMA welding machine TIG with CE stardands, and with certification.

Our Services

Our Services:


Main Market:
North America,  South America , Southeast Asia, Middle East, Africa, Europe,



Our Services For full form of welder:
1. OEM and ODM sevice offered, Machine Color and Logo, also with shipment marks,
2. One year & three years warranty,
3. 24H Technical Answering Service,

4. 72H After Sales Solution Service,

5. CE and RoHS, EMC and UL  certificate.


Strict Quality Control:
A). IQC for The Raw Material

1). Components Tested

2). EDXRF Spectrometer



B). QC Control for Mass Production



C). Machine Adjusted During Production



D). Machine Tested to Meet Customers Requirement

1). Constant Temperature Tested

2). Dropping Tested

3). Moisture Tested

4). Rainy Tested

5). Vibration Tested



E). Finished Machine Tested Before Shipment



F). Packaging and Belt



Company Information

200A IGBT DC inverter TIG/MMA welding machine TIG got good reputation from our buyer, and with long-term business.

Application scenario

200A IGBT DC inverter TIG/MMA welding machine TIG for below application scenario, various material.

FAQ

Q: Are you a factory or a trading company?
A: Yes, were a manufacturer, specializing at inverter welding machine, 6 core R&D engineers, they are famous in welding industrial, and over than 16 years welding experience.



Q: Where is your factory located?
A: Our factory is located at Shanghai, it's very convenience From Pudong Airport and Hongqiao Air, and also near Ningbo and Hangzhou, Zhejiang Province.


Q: What is the material of your products?
A: Right Welder Uses First Hand and High-end Components.



Q: How about quality control in your factory?
A: Right Welder are always paying great attentions to quality controlling from the
beginning to the end, our products will be tested strictly before shipment as above product flow presentation.



Q: How can I pay my order?
A: We accept T/T, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.


Q: How about your warranty?
A: We offer 3-year product life guarantee ,and a generous 1 year warranty on al purchases that begins with the bill of lading.


Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.


Q: How can I get the quotation?
A:We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price,please send the message on trade management or call us directly.
